PARTS LOCATOR
E-Flush
Popular Parts

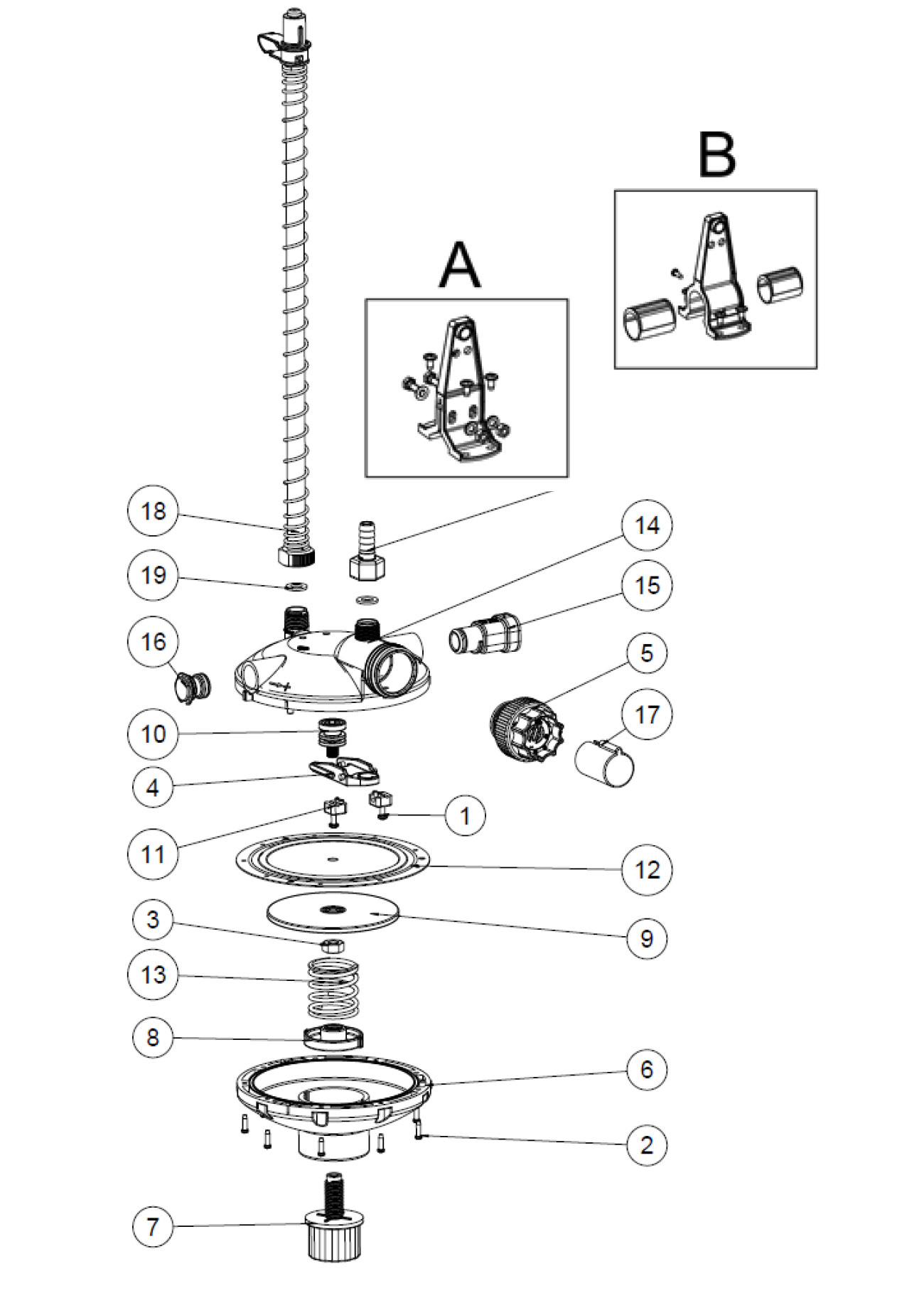

Technical Drawing - Find a Part
| Pos | Description | Art.-Nr |
| 1 | Pan head tapping screw 4,2×13 | 23 80 224 |
| 2 | Thermoplastic screw 4×14 | 23 98 022 |
| 3 | Hexagon nut M10 | 25 15 154 |
| 4 | Valve lever compelte yellow | 030 200 28 00 |
| 5 | Flush unit E-Flush/E-Control yellow | 030 240 20 02 |
| 6 | Bottom Part yellow | 030 240 21 00 |
| 7 | Adjustment Wheel red for pressure regulator | 030 240 22 00 |
| 8 | Adjustment Nut | 030 240 23 00 |
| 9 | Diaphragm Plate | 030 240 24 00 |
| 10 | Lever operation | 030 240 25 00 |
| 11 | Lever collet yellow | 030 240 27 00 |
| 12 | Diaphragm for pressure regulator Optima | 030 240 28 00 |
| 13 | Pressure spring 3,5 x 41,5 x45 | 030 240 33 00 |
| 14 | Upper part for regulator E-Flush yellow | 030 240 65 00 |
| 15 | Transition piece 22mm complete yellow -for nipple pipe 22x22mm -for nipple pipe 28x28mm -for round pipe 3/4″ -for tube 3/4″ All transition pieces including: O-ring |
0303-00 3304-00 33305-00 3306-00 30 02 520 |
| 16 | Pluf complete yellow -Includes O-ring |
3308-00 30 02 520 |
| 17 | Actuator 24V DC – 7,5m cable with cap Includes cap |
3313 030 240 82 00 |
| 18 | Breather unit complete yellow -450mm long -600mm long -900mm long |
– 3307-00 3307-6-00 3307-9-00 |
| 19 | Washer 1/2″ (10,5x19mm) for internal thread, black | 4215-05 |
| 20 | Hose connector 1/2″ with cap nut, yellow | 4314-00 |
