PARTS LOCATOR
Mixer 180 litre

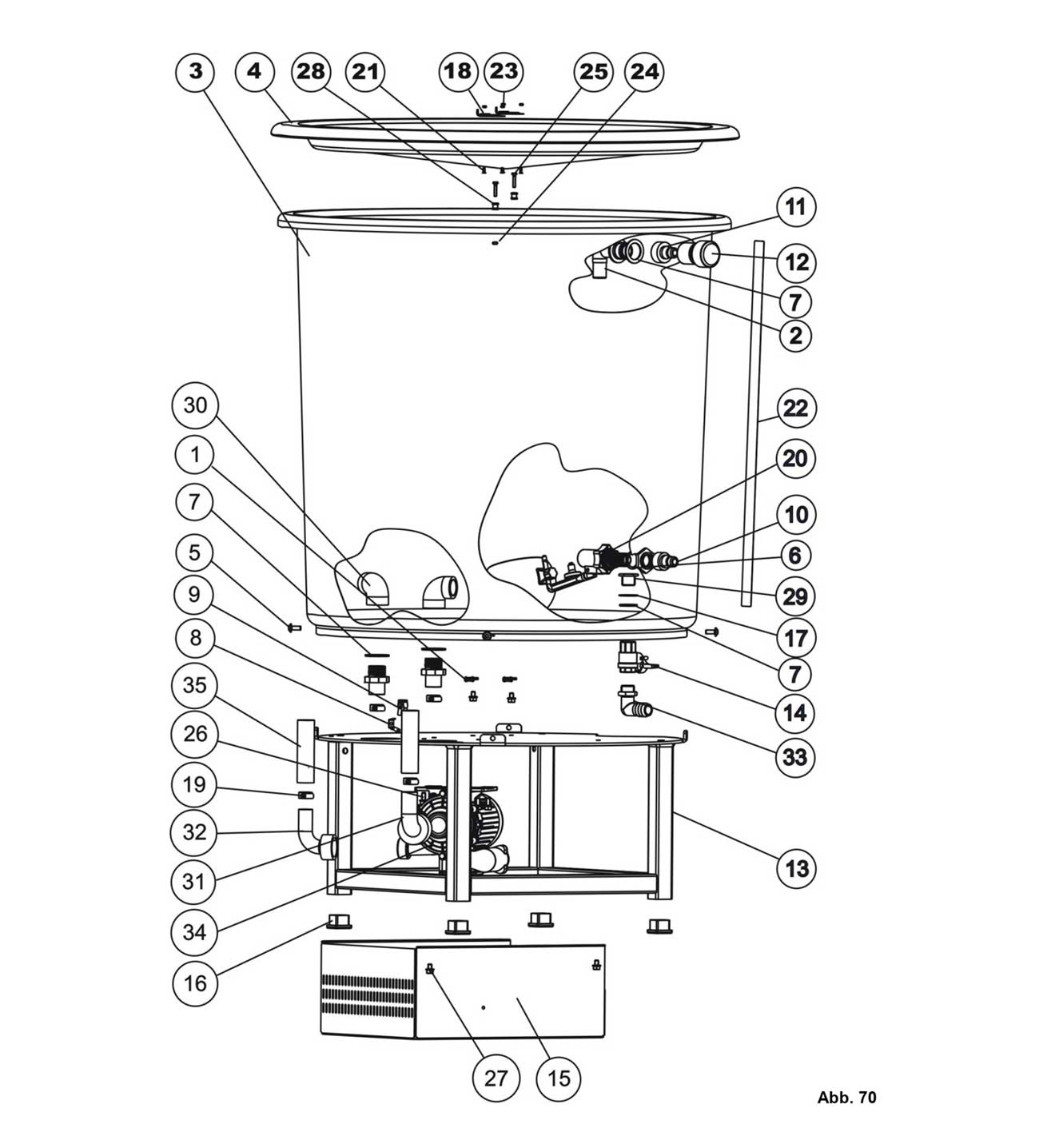

Technical Drawing - Find a Part
| Pos | Description | Art. Nr. |
| 1 | Alu clip 4,8mm | 40 09 071 |
| 2 | Outlet 90 degree elbow | 4209-04 |
| 3 | Tank 180L | 042 120 02 00 |
| 4 | Cover mixer 180L | 042 120 02 00 |
| 5 | DELTA PT screw WN 5451 6×15 | 21 96 224 |
| 6 | Washer 1/2″ | 4214-05 |
| 7 | Washer 3/4″ ext.thread | 4212-05 |
| 8 | Ground terminal | 51 85 001 |
| 9 | Receptacle for tabs 6.3×0.8×1 1mm | 52 03 001 |
| 10 | Gardena Connector 1/2″ | 42 50 021 |
| 11 | Gardena Connector 3/4″ | 42 50 041 |
| 12 | Gardena water stop 3/4″ | 42 50 046 |
| 13 | Base frame 180L | 042 100 04 01 |
| 14 | Ball valve 1/2″ internal thread | 4389 |
| 15 | Cover for pump 180L | 042 120 14 01 |
| 16 | Pipe cap | 70 50 005 |
| 17 | Washer 30x21x1 | 040 140 02 00 |
| 18 | Slide closure cpl. | 38 05 060 |
| 19 | Worm drive hose clip W4 20-32 | 40 11 507 |
| 20 | Ball valve 1/2″ | 4204 |
| 21 | Slotted countersunk screw M3x8 | 21 61 016 |
| 22 | Scale for mixer 4258 | 63 60 007 |
| 23 | Hexagon nut M3 | 25 15 102 |
| 24 | Hexagon nut M4 | 25 15 303 |
| 25 | Hexagon screw M4x20 | 25 56 033 |
| 26 | Hexagon screw with flange M6x12 | 21 99 067 |
| 27 | Hexagon screw with flange M6x8 | 21 99 065 |
| 28 | Sealing stud | 042 120 10 00 |
| 29 | Screw connection 1/2″ stainless steel | 042 120 10 01 |
| 30 | Elbow 90° 25mm x 3/4″ | 42 06 011 |
| 31 | Angle hose connector 1 1/4″ x 25mm | 40 12 028 |
| 32 | Angle hose connector 1 x 22mm | 40 12 023 |
| 33 | Angle hose connector 12″ | 40 12 008 |
| 34 | Centrifugal pump RM PP | 48 03 007 |
| 35 | Transition piece 3/4″ with tube | 042 100 14 00 |
