The Climber
NEW! Intermediate Drive 2.0

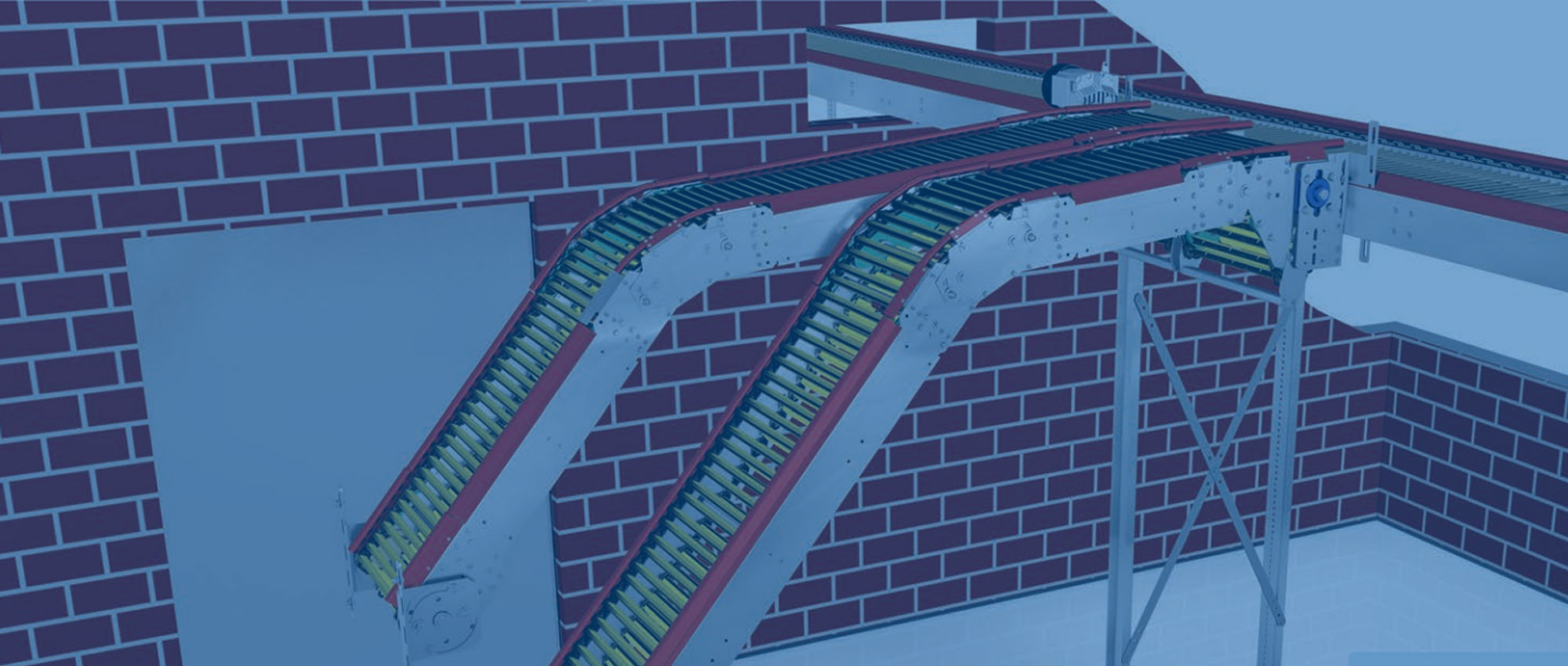

The steep conveyor called the Climber makes it possible to overcome the most significant differences in height in the smallest of spaces. Up to 1.73 m height difference on 1 m length is possible. The conveyor chain with plastic tab elements is the core of the conveyor. It enables inclines or declines of up to 60 degrees.
The Climber works with two externally guided round link chains connected by cross bars. No support or guide elements are needed in the middle of the conveyor, which divides or diverts the egg flow.
All components have been derived from the LUBING curve conveyor system and have been specially developed to meet the needs of farms with floor or aviary housing.
The well-known and proven standard elements such as drives, bends, pivoting units, telescopes for lift systems, and intermediate drives for large conveyor sections can all be integrated without transfer points.
Ask us for possibilities to create a tailor-made individual solution for you.
Intermediate Drive 2.0
For egg transport with extreme inclines
The LUBING Steep conveyor “Climber” works with two outer guided roundlink chains with welded cross bars. This guarantees high performance of function.
Together with the plastic tab elements it is the key point of the conveyor and allows to have inclines or declines up to 60° (possible with cover caps only). In the center of the conveyor no supports or guide elements are needed for dividing or diverting the egg flow.
Together with the plastic tab elements it is the key point of the conveyor and allows to have inclines or declines up to 60° (possible with cover caps only). In the center of the conveyor no supports or guide elements are needed for dividing or diverting the egg flow.

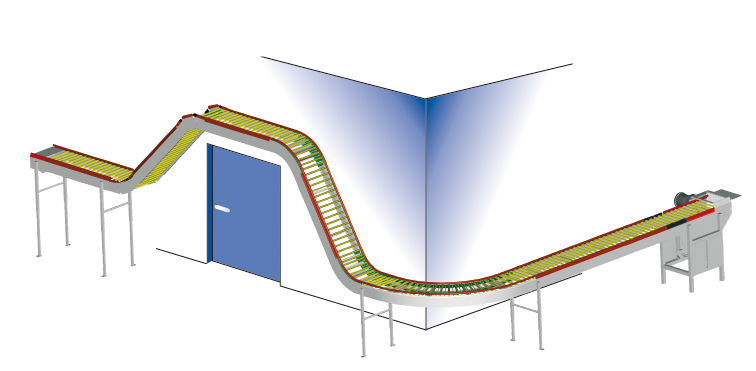

Steep inclines or declines are accomplished on short distances. Trouble free level changes of 67 inch (1,7 m) height by 39,5 inch (1 m) length are possible.
Custom plans available to suit individual requirements.
Conveyor lines from LUBING
Advantages
- gradients or inclines up to 60°
- compatible with all curved conveyor elements
- highest functional reliability due to two externally guided round link chains
- no centrally placed support or guide elements required: No interfering contours on the conveyor line
- the individually replaceable tab elements made of high-quality plastic ensure the safe position of all egg sizes in the transition from level to slope
- in the inner radius of the bends, the egg is slightly lifted by the tab elements. The special shape of the attachment elements ensures gentle egg handling
