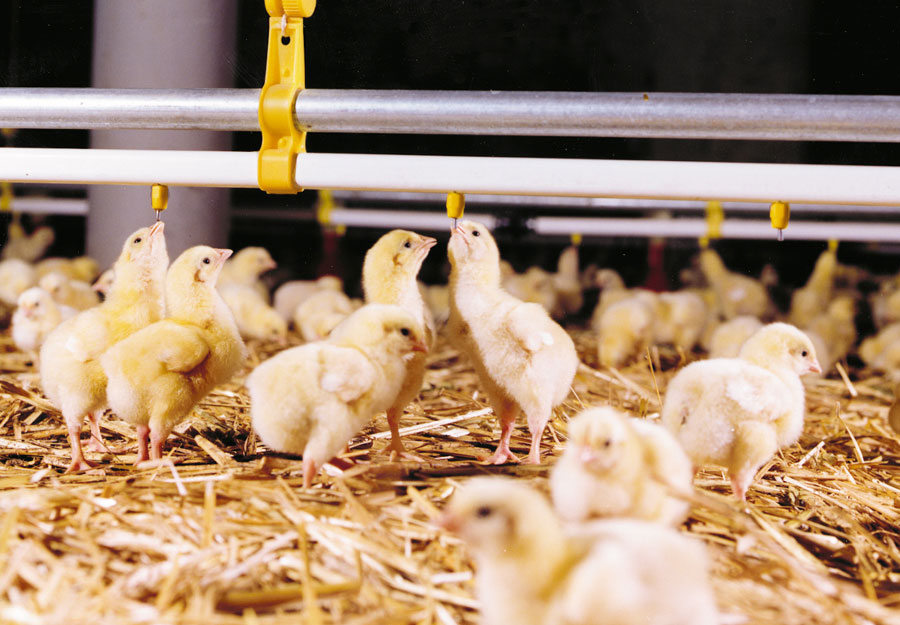

LUBING Drinking-Systems are proven and successfully used hundreds of thousand times for the optimal water supply of your animals in all types of housing. Due to their modular design, they can be expanded and supplemented at any time. With the patented and world-leading LUBING nipples, they form the optimum solution for efficient, animal welfare and hygienic poultry management.
The combination of nipple and Drip cup ensures a dry manure. The right height depends on the size of the animals: They should have to stretch slightly to reach the nipples. Every delivered system includes a height-table, making it easy to find the right height of the drinking line from the first day on.
The LUBING Floor-watering system for broilers consists of the following elements: Water supply, Drinking elements, Breather unit, Suspension.
Water Supply
The main water supply secures an optimum water quality for a long service life of the nipple drinkers. The water should have the quality of drinking water. In any case, the water must be filtered. The water runs from the main water supply through the pressure regulator or the ball tank with an integrated flush system into the drinking lines. Both versions are available for front or middle installations.
2. Drinking Elements
3. Breather Unit
A flush breather unit is installed at the end of each drinking line. All valves of the breather units close during flushing, which can be started by hand or the automatic flush system.
4. Suspension
The drinking lines are suspended by hangers, which are stuck on the aluminium profiles every 3 m. These hangers are connected via ceiling pulleys with the central hoisting cable. A hand or ceiling winch can adjust the drinking line to the desired height. It can be winched up quickly to the ceiling for emptying or cleaning.
