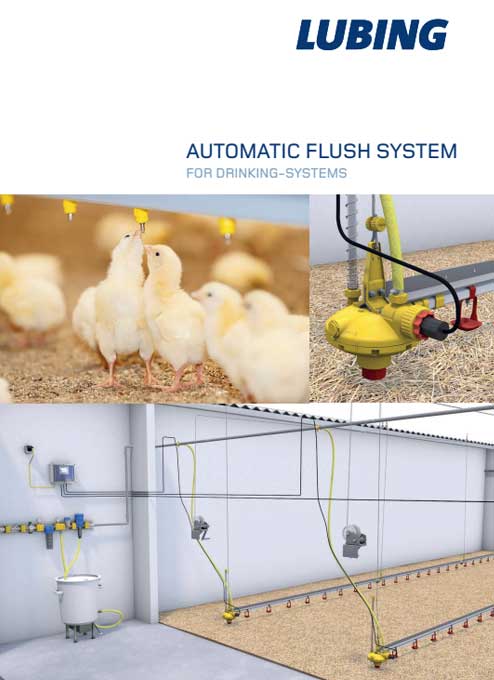

New automatic Flushing System

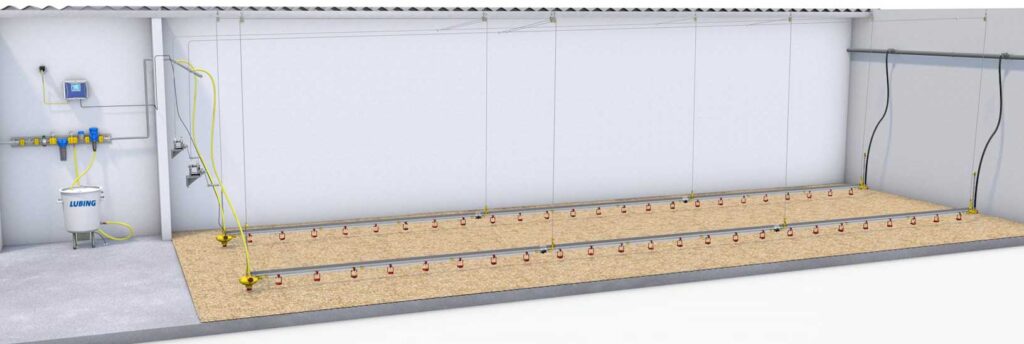

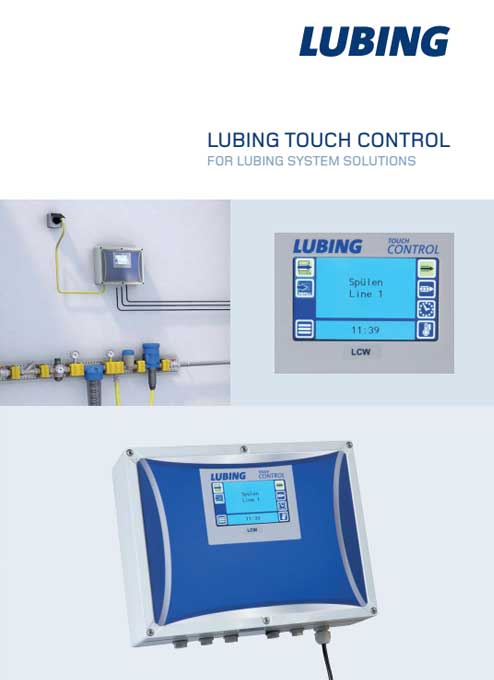

With the automatic flushing system, your drinking system is flushed by itself. With the LUBING Touch Control LCW, you can wash up to 10 drinking lines separately. This system can be easily retrofitted into existing drinking systems.
Cup with starter ball
Rearing Cup
Automatic Flushing Floor Watering

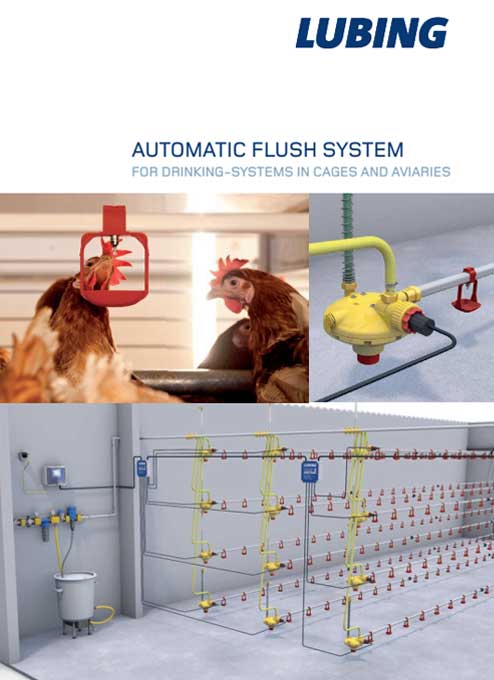

Automatic Flushing Cage and Aviary Management

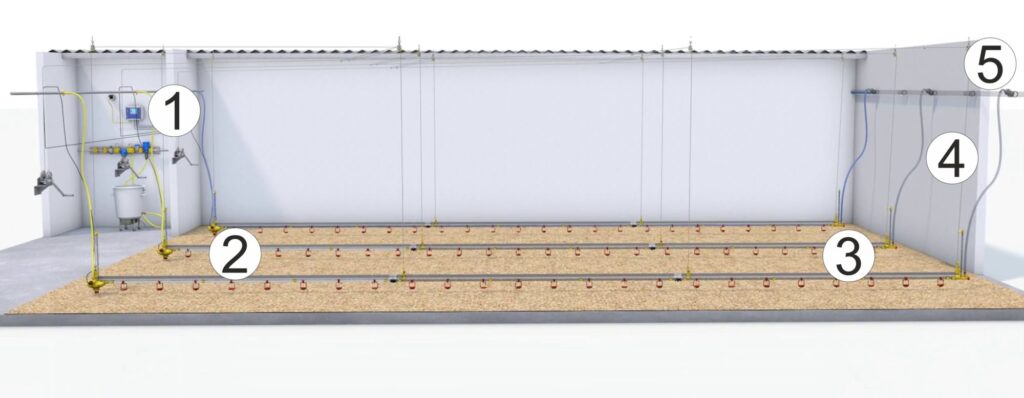

Needed components:
With the LUBING controller (1), the duration and timing of flushing can be adjusted to individual needs. With that, you can change the time required for sufficient flushing depending on the length of the drinking lines and thus avoid water waste during the flushing.
Each drinking line is flushed separately, but it is also possible to flush several lines simultaneously by clamping them to the same contact.

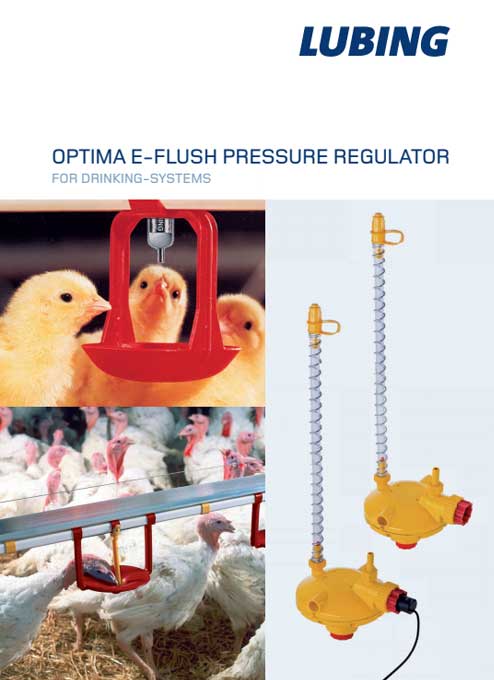

The pressure regulator Optima E-Flush (2) actuator is connected directly to the controller. If necessary, the number of drinking lines (standard: 10) can increase by expanding boxes as often as you need, with 8 drinking lines per box.
A new breather unit (3) was developed for the automatic flushing. This is fastened to the end of the drinking line. The height of the water column is shown by a red ball in the riser. Through the drain kit (4), the flushing water is led to the drainpipe (5).
